Regal Rexnord

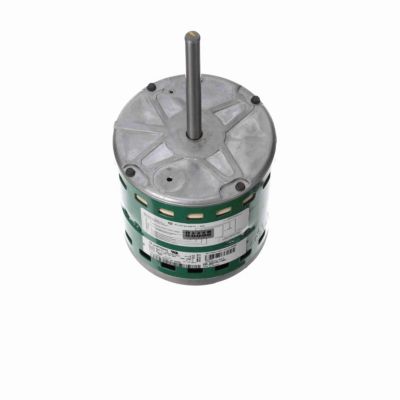

ECM Direct Drive Blower Motor 1/2 HP, Voltage 208-230, Frequency 60/50, 1 Phase
AOS6205E ECM Direct Drive Blower Motor 1/2 HP, Voltage 208-230, Frequency 60/50, 1 Phase
SKU:AOS6205E
Regular price
$399.88 USD
Regular price
Sale price
$399.88 USD
Unit price
/
per
Couldn't load pickup availability
X13 1/2 HP Evergreen Motor with standard features that include:
- Multi-speed, constant torque, brushless DC motor
- Available in 115V or 208-230VAC single-phase input, 50/60Hz
- Designed to replace direct-drive blower motors in residential and light commercial indoor furnaces, air handlers, and package systems that were designed with a standard ECM motor, such as an X13 or equivalent competitor model.
- Available in 1/3, 1/2, 3/4 and 1HP ratings
- Automatically determines motor direction using Genteq's Rotation Sensing Technology.
- 5 discrete speeds using 24VAC (3 using 18VDC) Low voltage signal harness provided with the motor.
- Operating speed range of 600-1200 rpm
- NEMA 48-frame (5.6 inch diameter) Belly Band Mount with 5-inch long ½ inch diameter shaft.
- UL and CSA recognized component
