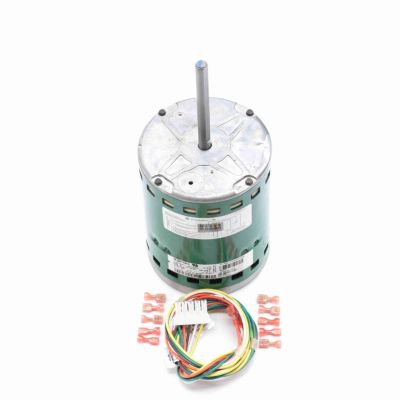

ECM Direct Drive Blower Motor, 1 HP, Voltage 208-230, Frequency 60/50, 1 Phase

ECM Direct Drive Blower Motor, ECM, Motor Enclosure Design Open Air-Over, 1 HP, 1200 Nameplate RPM, 48 Frame, Voltage 208-230, Frequency 60/50, 1 Phase, Full Load Amps 7. 6, Motor Mounting Type Band, Insulation Class B, Number of Speeds 5, Motor Shaft Rotation CW/CCW, Ball Bearings, Service Factor 1. 0, Ambient Temperature -20 Degrees to 45 Degrees C, Frame Material Rolled Steel, Overall Length 12-3/16 In. , Length Less Shaft 7-1/2 In. , Motor Shaft Design Flat, Shaft Dia. 1/2 In.
