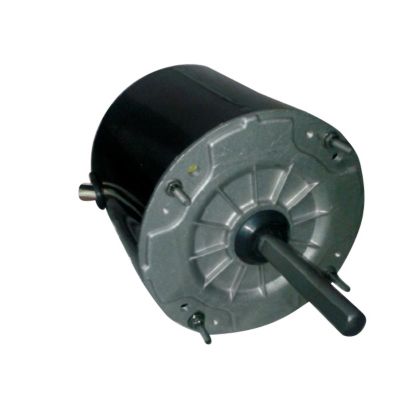

1/4-1/5-1/6 HP 208-230V 1075 RPM Single Speed Reversible Rotation CF Motor

MARS 42 frame Super-Fit multi-horsepower condenser fan motors are ideal for truck stock. Two models cover 208-230V applications from 1/12 HP through 1/4 HP replacing many AOS, Westinghouse, Fasco, Emerson and GE motor designs.

Features:

• Super-Fit mounting holes for Trane 4.33, 4.42 and 4.62 bolt circle mounting. Includes self threading screws.
• All angle mount, ball bearing
• Reversible rotation
• Multi-HP
• Capacitor requirement noted on motor label
• Flatted shaft
• Totally enclosed

Specifications:

• Class "B" insulation
• 42 frame
• Single phase, 60 Hz
• Continuous air over
• Thermal overlaod protected
• Continuous duty
• 36 inch leads
