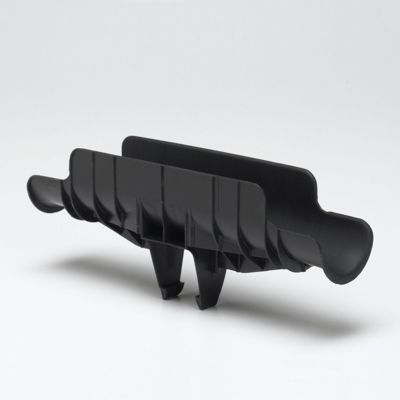

13109764 - Snap N Shield For Strut, 13.5" Length, 5.52" ID, Black

Material: Prime grade high-impact copolymer polypropylene

Features:

• Fast easy installation -snaps onto strut channel: up to 60% quicker than traditional metal shields
• Horizontal installation attachment feature to minimize the need to lift the pipe during installation
• No tools required for installation
• Tight snap-on fit design helps eliminate shield movement which helps prevent insulation damage
• Tapered end lip design helps protect insulation from damage that can be caused by sharp edge of traditional saddles
• High sidewalls are designed to contain refrigerant liquid lines for efficient system installation
• Designed for side-by-side installation to help minimize costs in high density applications
• Wide mounting flange to allow for optional self-tapping screws
• MSS Standards require 12" (205mm) of surface contact for pipe sizes up to 4" (100mm). All sizes of Snap 'N Shield have 12" (305mm) of surface contact
• Built-in cable tie grooves
• UL Classified for US and Canada
• UV resistant
• Operating temperature: -40F (-40C) to 178 (81C)
• Paintable
• Custom textured interior shield surface to allow for thermal expansion of insulated piping

Applications: Strut or trapeze mounted horizontal pipe runs for refrigeration, air conditioning and plumbing

Certification: UL Classified for USA UL723 (ASTM E84) Ceiling: FS15 / SD0 Floor: FS150 / SD250
UL Classified for Canada per CAN/ULC-S102.2 FSR 145 / SDC 600

Material is FDA compliant, RoHS compliant,

CA Proposition 65 compliant

Color: Black (B) or White (W)
